Unique Key Features:
- Connect Hydronix sensors to a PC or Laptop.
- Complete kit includes a sensor power supply and all the required cables.

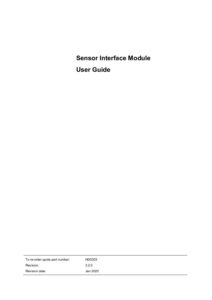

- An accompanying USB Drive contains the USB driver, Hydro-Com software and associated user guides which contain detailed instructions and system requirements.
Modbus to control system
Input / Output connections
Recommended field cabling:
- Six pairs twisted (12 cores total) screened (shielded) cable with 22 AWG, 0.35mm2 conductors
- Screen (shield): Braid with 65% minimum coverage plus aluminium/polyester foil
- Recommended cable types: Belden 8306, Alpha 6373
- Maximum cable run: 100m, separate to any heavy equipment power cables
