安装点:
- 免费下载软件。
- Hydro-Com 可以安装在任何基于 Microsoft WindowsTM 的 PC 上（支持 Windows XP 和更新版本）。
独特重要功能:
- 可下载软件能在世界任意地方访问、控制和监控任何传感器。
- 集中进行质量管理并降低成本。
- 支持多语言，简单易用的界面。
- 可用于备份和还原传感器设置以及创建用于传感器的材料校准数据库。
- 工程师用来诊断错误或升级传感器固件。
- 目前提供以下语言版本：中文、英语、法语、德语、意大利语、葡萄牙语、俄语和西班牙语。
- Hydro-Com
- Digital Technology
- Digital technology provides precise, linear moisture measurement.

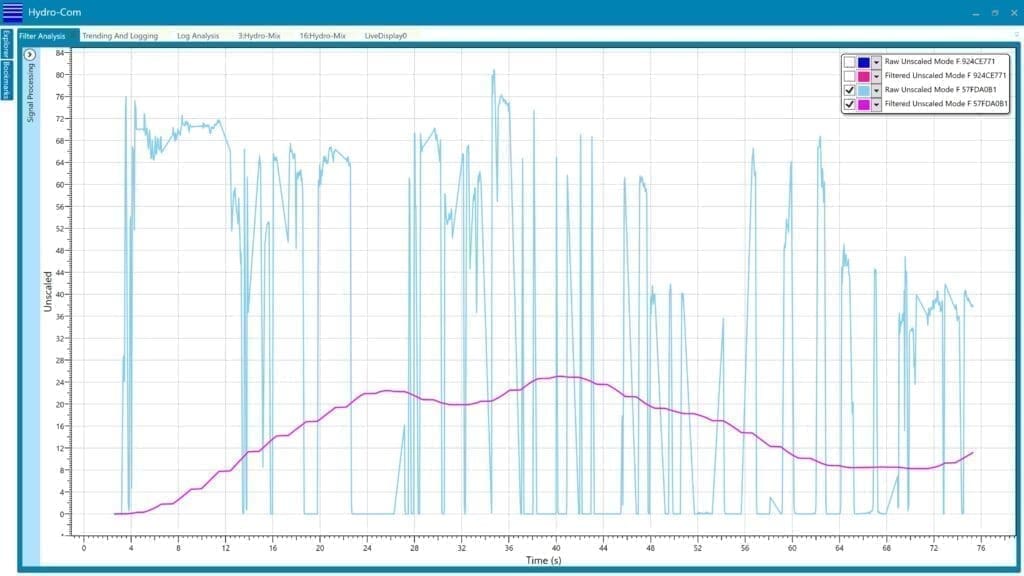

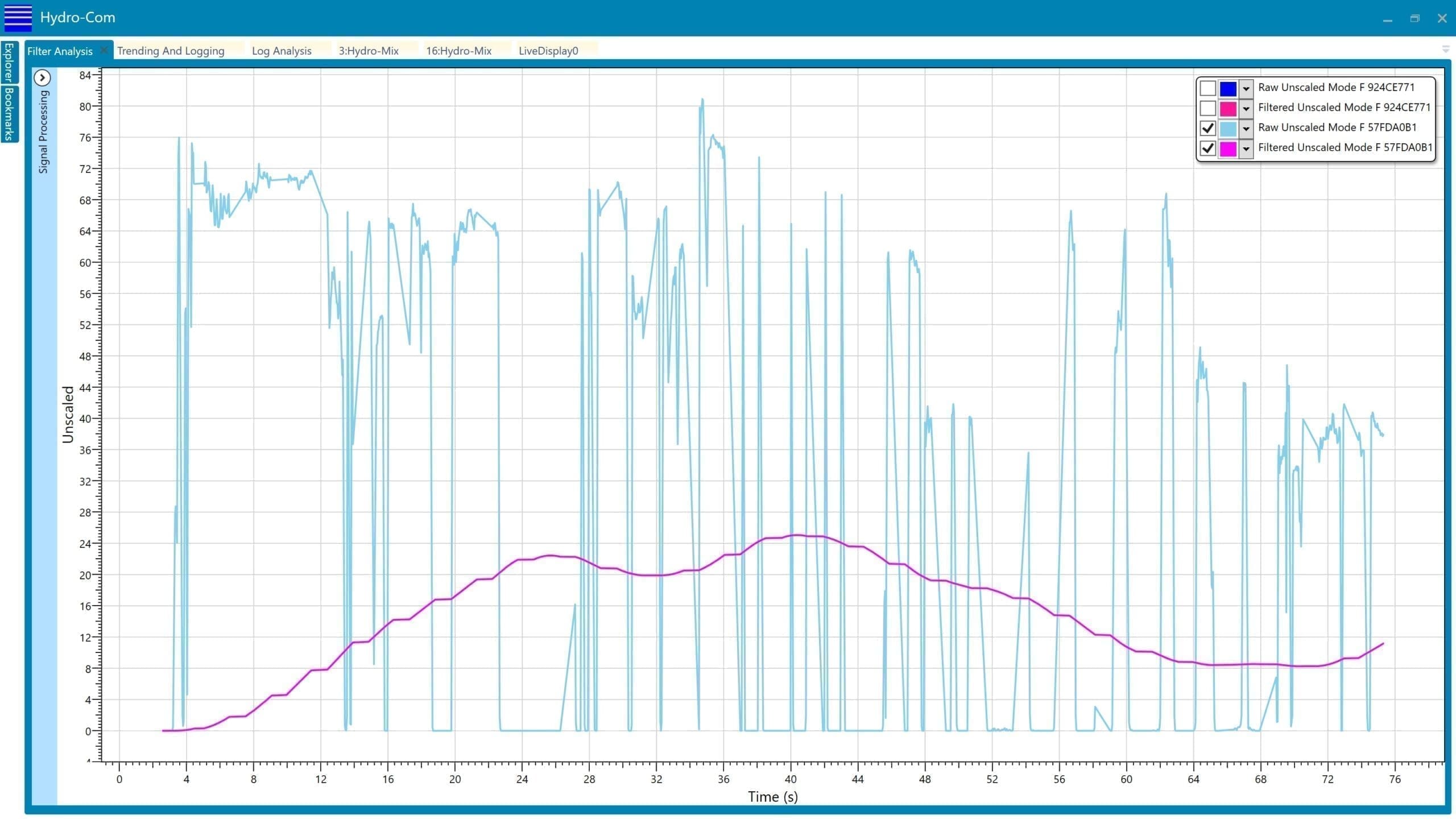

- Advanced Digital Signal Processing
- The sensor response may be adjusted remotely using the Hydro-Com software to minimise the effects of noise of the measured signal. Advanced Digital Signal Processing provides a clear signal with a rapid response.
- Measurement Modes
- Choice of measurement modes for optimising sensor performance in a variety of applications and material types (except Hydro-Probe).
- Fully Temperature Compensated Measurement
- The sensor internally adjusts for mechanical changes due to temperature fluctuations
- Easy to Interface
- Two analogue outputs and digital RS485 communications and configurable digital inputs / output make the sensor simple to integrate into a control system. Includes Modbus.
- Fast Measurement
- Measuring at 25 times per second, the sensor continuously detects changes in the moisture of the materials throughout processing.
- Temperature Measurement
- Temperature output is available to provide a readout of material temperature.
- Accuracy of Measurement
- All measurements can be calibrated to an accuracy of 0.2% for aggregates (0.1% in the mixer) and 0.5% for other materials.
- Sensor Configuration
- Sensors can be remotely configured using Hydro-Com diagnostic software or Hydro-View/Hydro-Hub. All readings and sensor parameters are available including the type of output and filtering characteristics.

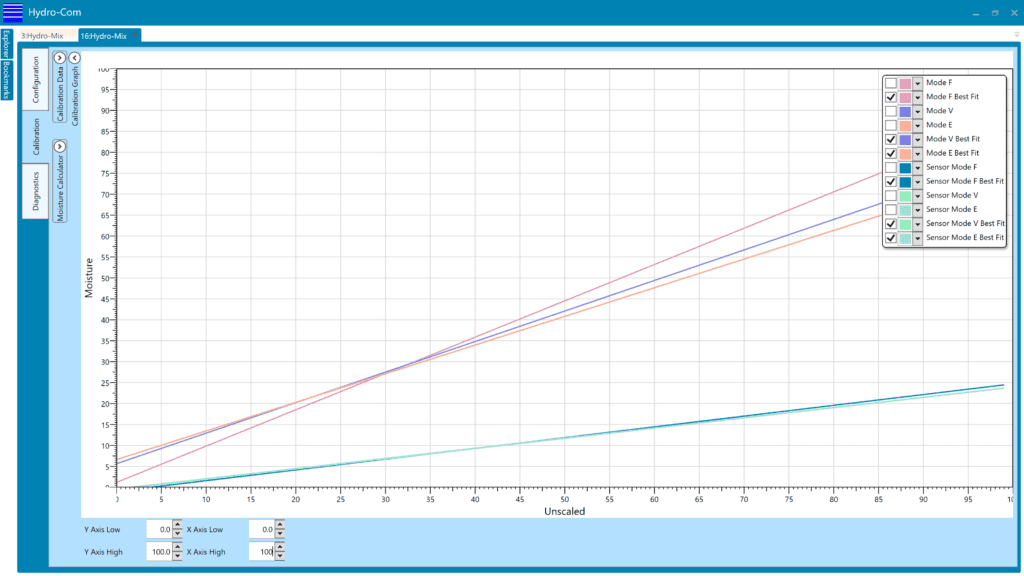

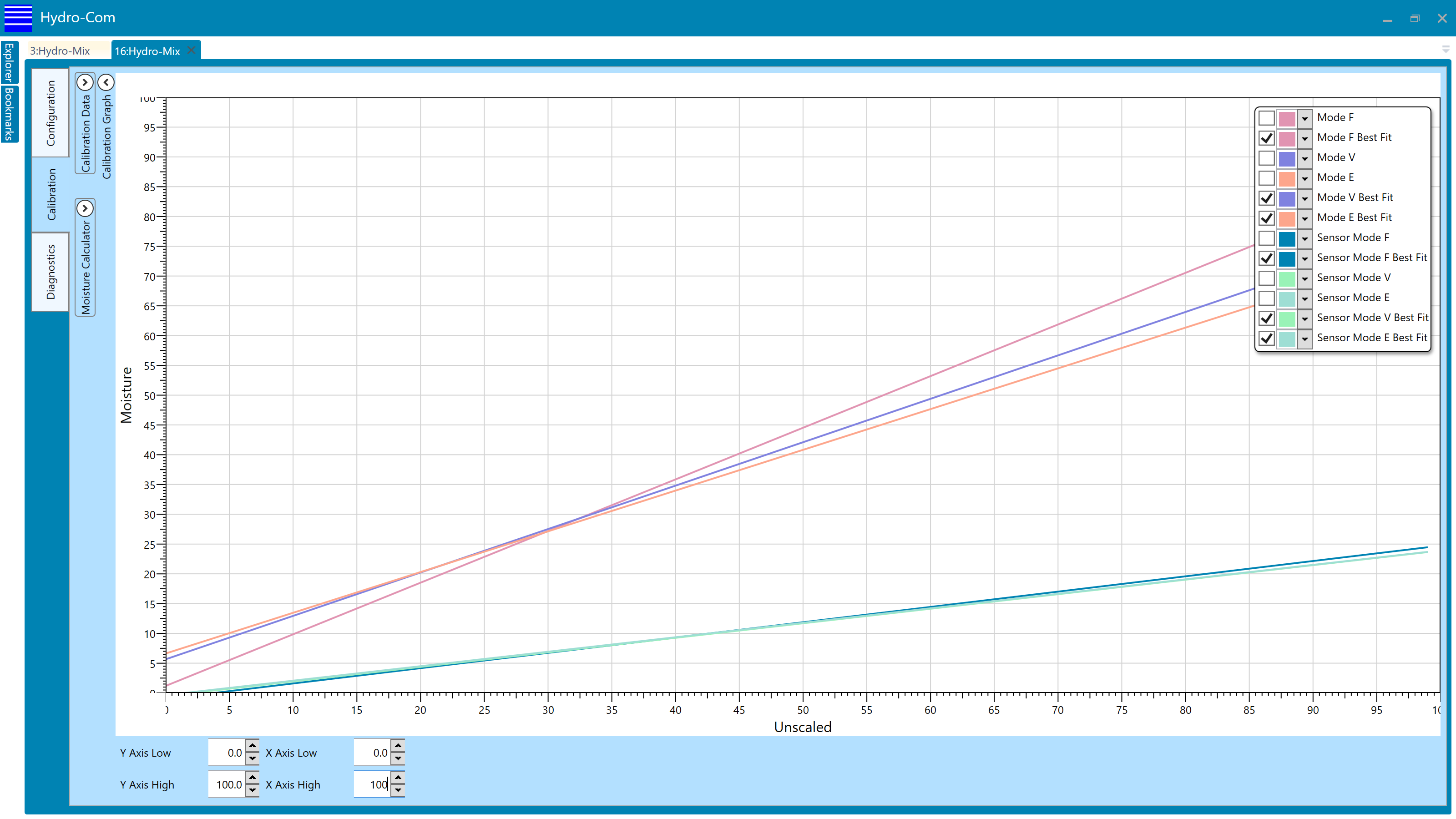

- Calibration
- The sensor may be internally calibrated using Hydro-Com software, or the linear output may be calibrated within the control system or remotely by using the Hydronix Hydro-View/Hydro-Hub interfaces.
- Simple Power Requirements
- The sensor may be powered from a 15-30V dc supply. Multiple sensors may be driven from a single power source.
Modbus，用于控制系统
输入/输出连接
推荐的现场布线方式:
- 六对双绞线（共 12 芯）屏蔽电缆，带 22 AWG、0.35mm2 的导体
- 屏蔽：编织屏蔽层（最低 65% 的覆盖面积）加铝/聚酯薄膜
- 推荐的电缆类型：Belden 8306, Alpha 6373
- 电缆最大长度：100m，与其他重型设备供电电缆区分
